The original OCT-1 robot was developed for a university museum as an educational demonstration of
"a day in the life of a spiny lobster, panulirus japonicus." The development of this robot was
supervised by an animal ethologist specializing in ocean animals. In that application, using the highly
effective behavior-based software composed of simple agents made up of a sensor-action pair run on
a powerful on-board processor, the robot lobsters autonomously look for infrared "food" sources while
avoiding obstacles such as walls, "other lobsters", obstacles on the "ocean floor", and an ultrasonic
signal emitting "octopus" - the lobster's predator. The robot lobster would learn to adjust its steps to

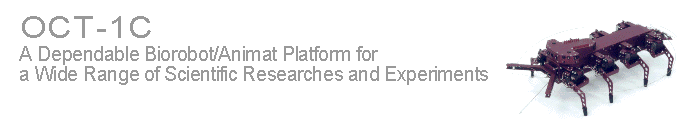

clear bumps found on the simulated ocean floor. The new version (OCT-1c) has been developed as a
result of a succession of revisions (OCT-1, OCT-1a, OCT-1b) for improved durability, reliability and
longer experimental runs for various biorobotic, animat, behavioral, and ethological research. It is
approximately 1kg lighter than OCT-1, and the leg motors have about 30% more torque. The robot is
currently being used at a number of leading research institutions throughout the world for its superb
power-weight ratio, on-board computational power, and durability. These users include École
Normale Superieure, Paris; Sussex University; Tokyo Institute of Technology; Scuola Superiore
Sant'Anna, Italy; Tokai University; and the University of Technology, Malaysia. OCT-1c is primarily
used for walking robot research and experiments including study on gait development and co-ordination,
learning in robot behavior, and research on Evolutionary Robotics.
|
Processor:
|
Motorola 68332 (Motorola 68000 family microcontroller)
|
|
On-board Memory:
|
RAM: 1MByte
ROM: 64KByte
|
|
Sensors:
|
15 light sensors
8 active infrared sensors
5 whiskers: 2 at front, 2 on side, and 1 at back
|
|
Serial ports:
|
RS232 level 1
TTL level 2
|
|
User-ports:
|
8 digital outputs
6 digital inputs
8 analog inputs
|
|
Power:
|
Two Ni-Cd batteries (4.8V each) for motors and computers
|
|
Run Time:
|
Motor: 40 minutes of continuous operation per charge
Computer: 90 minutes of continuous operation per charge
|
|
Size:
|
width: 35 cm (14 inches)
length: 60 cm (24 inches)
height: 18 cm (7 inches) (fully standing up)
|
|
Weight:
|
3.45 kg including batteries
|
|
Top Speed:
|
15 cm/second
|
|
Actuators:
|
2 servo-motors on each of 8 legs (total of 16 motors) for both forward-backward and up-down leg
movement. The total dof of the robot is 16.
|
Video Clip - multiple OCT robots
Windows Media Player (553 KB)
|
Hardware options
- Compound eye system
- Articulation system for the compound eye system
- People following/people avoidance sensor set
- Miniature video camera/transmitter/receiver
- Extra light sensor assembly
- Voice recognition/synthesis module
Software options
- Compound eye input processing system
- Control software for articulated systems for compound eye system
- People following/avoidance software
- Light source following/avoidance software
- Basic pseudo command vocabulary for the speech recognition unit
|
