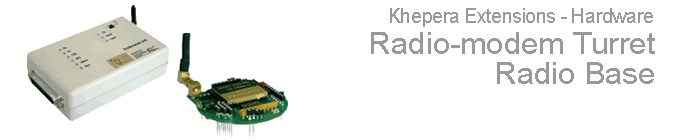

Radio-modem Turret
- Radio communication with up to 32 robots
- Direct robot addressing
- Error detection and correction
- Possibility to set as default transmission channel
- Possibility to communicate with a host computer
|
Speed (real throughput):
|
4.8 kbits/s depending on the size of the messages
|
|
Frequency:
|
418 MHz or 433,920 MHz
|
|
Maximum Distance:
|
10 m
|
|
Maximum Number of Robots:
|
32
|
|
Own Processor:
|
Motorola 68HC11
|
|
RAM:
|
256 bytes
|
|
ROM:
|
2 Kbytes
|
|
Extension Bus:
|
The robot with a radio turret can be expanded by new modules added on the K-Extension bus
|
|
Size:
|
55 x 55 x 15 mm
|
Radio Base
- Radio communication with up to 32 robots
- Direct robot addressing
- Error detection and correction
- Connection with a host computer
|
Speed (real throughput):
|
4.8 kbits/s depending on the size of the messages
|
|
Frequency:
|
418 MHz or 433,920 MHz
|
|
Maximum Distance:
|
10 m
|
|
Maximum Number of Robots:
|
32
|
|
Interface:
|
RS232 DB25 female
|
|
Own processor:
|
Motorola M68331
|
|
RAM:
|
32 kbytes
|
|
ROM:
|
128 kbytes
|
|
Size:
|
70 x 120 x 25 mm
|
*Please note that "Khepera" is used here to refer to either Khepera or Khepera II.
|
