- Linear vision (64 x 1 pixels)
- Automatic light adaptation (auto iris)
- Light intensity detection
- On board preprocessing
- Internal modularity
New Experimental Possibilities
- Natural landmark recognition (natural optical patterns)
- Artificial landmark recognition (for instance, bar code)
- Light source identification
- Visual stimuli classification
|
On board preprocessing:
|
Maximal and minimal pixel intensity
Sub-array and sub-resolution extraction
|
|
Sensors:
|
Linear light sensitive array
Ambient light sensor
|
|
Size:
|
Diameter: 55 mm
Height: 28 mm
|
|
Resolution of image:
|
64(x1) pixels
256 grey levels/pixel
|
|

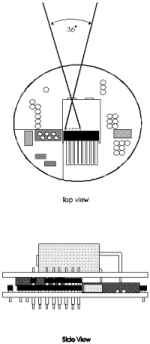

Field of view:
|
36 degrees (horizontal)
Distance between 5 and 25 cm
|
|
Extension bus:
|
The K213 vision turret is a top turret. No other turrets can be added on top of the K213 vision turret.
|
|
Software Environment:
|
LabVIEW® (on PC, MAC & SUN)
(LabVIEW® is a trademark of
National Instruments.)
|
|
