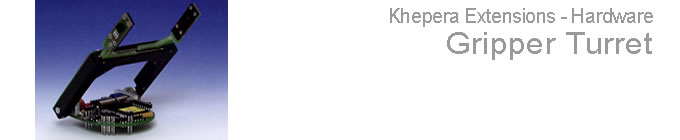

- Compact size and shape suitable for Khepera
- A simple protocol from the main processor controls the grippers
- Detect objects between the grippers, maximum size of the object is 40 mm
- Measures the electrical resistance of the gripped object
- The object can be lifted and carried
- Other turrets can be plugged on top of the gripper
- Pass-through K-bus for additional turrets
Application Areas
- Intelligent classification and sorting
- Collective behavior
- Object manipulation
- Object transportation
|
- LEDs
- Serial line (S) connector
- Reset button
- Arm
- Gripper
- Break beam
- Resistivity sensor
|
|
|
Processor:
|
Motorola 68HC11
|
|
RAM:
|
256 bytes
|
|
ROM:
|
2 Kbytes
|
|
Motion:
|
2 DC motors with absolute angle encoders
|
|
Sensors:
|
Optical barrier inside the gripper for object detection, measurement of the electrical
resistivity of the gripped object
|
|
Extension bus:
|
The robot with a gripper turret can be expanded by new modules added on the K-Extension bus.
|
|
Size:
|
65 mm x 90 mm x 10 mm
|
|
Weight:
|
Approximately 50 g
|
|
