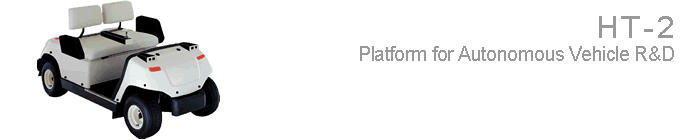

HT-2 is a mobile robot platform designed for autonomous car research. It is meant for researchers and
developers who wish to implement the results of their research on "automobiles", or fully
autonomous cars.
- Autonomous vehicle base which operates with behavior-based robotic principles
- Used as abased for research on highly autonomous vehicles
- Open design both in hardware and software for smooth addition and integration of various options
provided by AAI or others
- Has basic collision avoidance capability in complex environments using both vision and ultrasonic sensors
- User-developed behaviors written in C and other languages easily incorporated to form an
integrated on-board software
- Seamlessly and smoothly shifts from fully autonomous to fully manual operation using a joystick
- Framework for landmark-based navigation using vision system (software option, available Q4/04)
- Voice commands and vocal status report through voice recognition/synthesis interface (hardware/software option)
- Data collection, monitoring, recording, and analyses by a host via video/data communication options
- Sound vehicle base for repeated experiments in the field
|
Standard processor:
|
EBX processor (Pentium III embedded PC processor board), 1GHz clock, 1GBytes DRAM
|
|
Standard sensors:
|
Ultrasonic sensors (16), bumper sensors (4+8), encoders (2)
|
|
Behavior-based vision system:
|
Based on Texas Instruments' TMS320C642 high speed (600 MHz clock) DSP chip.
Maximum frame resolution
is 720 x 480 pixels. Basic affordance processing carried out at frame rate
|
|
LCD console:
|
20 characters x 4 lines back-lit type
|
|
Battery:
|
Six 8V batteries (48V)
|
|
Safety features:
|
Emergency stop switches (2 front and 2 rear),
seamless and instant manual override with a joystick, 8km/h energy absorbing
front/rear bumpers with built-in collision sensors, driver-in-sear sensor, default bump
behaviors, default collision-avoidance behaviors, remote kill switch (option)
|
|
User ports:
|
Analog inputs (6), digital inputs (6), digital outputs (8), serial port (1)
|
|
Programming language:
|
C and others including assemblers
|
|
Size:
|
length: 239 cm (93.9 inches)
width: 120 cm (47.2 inches)
|
|
Wheelbase:
|
163 cm (64.3 inches)
|
|
Weight:
|
290 kg (638 lbs)
|
|
Maximum payload:
|
Approx. 300 kg (660 lbs)
|
|
Ground clearance:
|
9.7 cm (3.8 inches)
|
|
Speed:
|
0 - 4 Km/h (0 - 2.5 mph), continuouslly variable. Can be increased by user. Maximum
manually operated speed is 19 Km/h (12 mph). Reverse speed at 65%.
|
|
Turning radius:
|
2.9m (9.5 ft)
|
|
Maximum inclination:
|
20 degrees
|
|
Range:
|
20 Km (12.5 miles) maximum per full charge (flat smooth furface)
|
|
Suspension:
|
Precision independent front strut suspension with minimal camber and toe
changes. Rear suspension with coil springs and hydraulic shock absorbers.
|
|
Steering:
|
DC motor driven rack and pinion, computer controlled
|
|
Brakes:
|
Power regeneration by motors and self-adjusting rear drum brakes. Parking brake with
automatic release.
|
- Navigation system: Vision-based outdoor landmark navigation system (Q3/04)
- DGPS system: Can maintain }0.4 meter accuracy within the range of the
differential station (maximum 1~3 km (0.6~0.9 miles))
- Evolvable hardware option: Hardware unit to evolve some of the behaviors for
running the vehicle.
- Voice I/O: A voice recognition/synthesis box capable of recognizing
up to 500 utterances and can utter up to 1000 words or short sentences.
- Also can incorporate other AAI and user options
|
